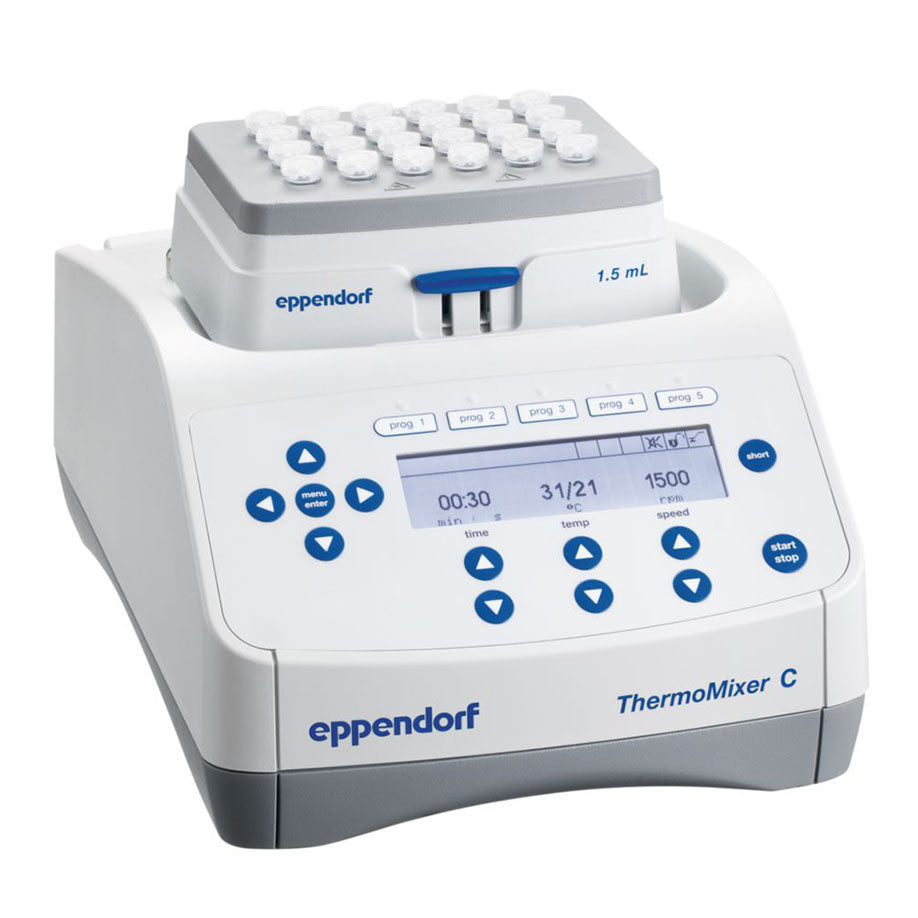

The ThermoMixer C combines tempering and mixing in one device and supports reproducible experimental results through precise temperature control and powerful mixing technology. Simultaneous mixing during incubation can shorten reaction times and ensure homogeneous sample distribution.
The basic unit is supplied without a thermoblock and is compatible with interchangeable Eppendorf SmartBlocks for various vessel and plate formats.
Functions and Features
-
Heating, mixing, and cooling in common vessel and plate formats (5 µl – 50 ml, depending on SmartBlock)
-
Mixing frequency up to 3,000 rpm (depending on the SmartBlock used)
-
2DMix-Control for improved mixing results
-
Anti-spill technology to reduce lid wetting and cross-contamination
-
condens.protect® when using the Eppendorf ThermoTop to prevent condensate formation
-
Wide selection of interchangeable Eppendorf SmartBlocks
-
QuickRelease system for fast block changes
-
Predefined program keys and intuitive menu navigation
-
USB interface
Technical Data
-
Temperature range: min. 15 °C below RT (depending on SmartBlock) to max. 100 °C
-
Temperature accuracy: max. ±0.5 °C (at 20–45 °C)
-
Heating rate: max. 7 °C/min (when using SmartBlock plates)
-
Cooling rate: max. 2.5 °C/min (between 100 °C and RT)
-
Timer: 15 s to 99:30 h, continuous operation possible
-
Mixing frequency: 300 – 3,000 rpm (depending on SmartBlock)
-
Mixing and vortex radius: 1.5 mm
-
Mixing radius: 3 mm
-
Temperature setting: 1 °C increments up to 100 °C
-
Power connection: 220 – 240 V, 50 – 60 Hz
-
Maximum power consumption: 200 W
-
Dimensions (W x D x H): 20.6 x 30.4 x 13.6 cm
-
Weight (without accessories): 6.3 kg
The ThermoMixer C is designed for versatile laboratory applications and allows flexible adaptation to different vessel formats through its modular SmartBlock system.
