Kern & Sohn GmbH Binocular transmitted light microscope OBL 127
SKU: SKU: KSB OBL127
PZN: PZN:
Packaging unit: VE:
Inbound: Item in stock, expected delivery in 2-3 weeks.
Verpackungseinheit :
Couldn't load pickup availability

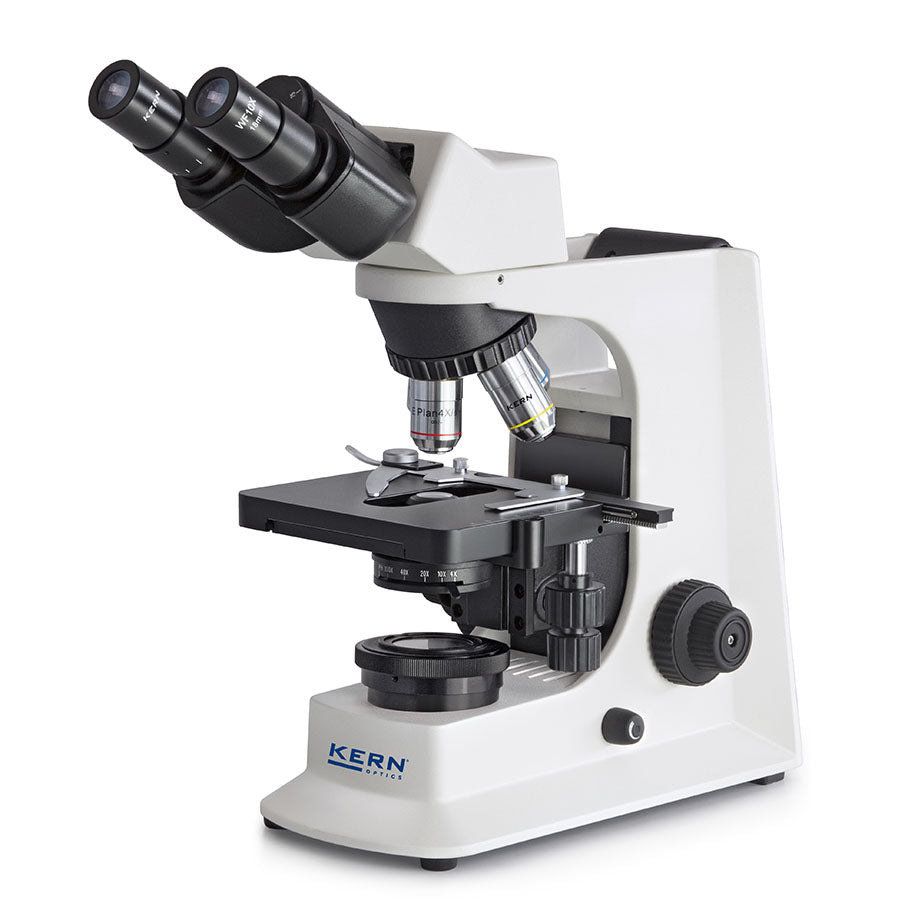

The OBL 127 is a versatile transmitted light microscope with infinity optics and fixed pre-centered Köhler illumination. It is designed for classic transmitted light applications in the laboratory and combines optical precision with a robust construction.
Optics and Tube
-
Tube: Binocular, Siedentopf, 30° inclined, 360° rotatable
-
Interpupillary distance: 50 – 75 mm (for infinity system)
-
Diopter adjustment: one-sided
-
4-position objective revolver, ball-bearing
-
Infinity corrected E-Plan objectives:
-
4x
-
10x
-
40x (spring)
-
100x (spring/oil)
-
Illumination and Condenser
-
Fixed pre-centered Köhler illumination
-
Focusable N.A. 1.25 Abbe condenser
-
Integrated aperture and field diaphragm
-
Continuously dimmable 3 W LED transmitted light illumination (not rechargeable)
-
Integrated blue color filter
Mechanics and Operation
-
Large mechanical stage
-
Specimen holder for up to 2 slides
-
Coaxial coarse and fine adjustment on both sides
-
Robust, ergonomic base
-
Integrated power supply (230 V / 50 Hz)
