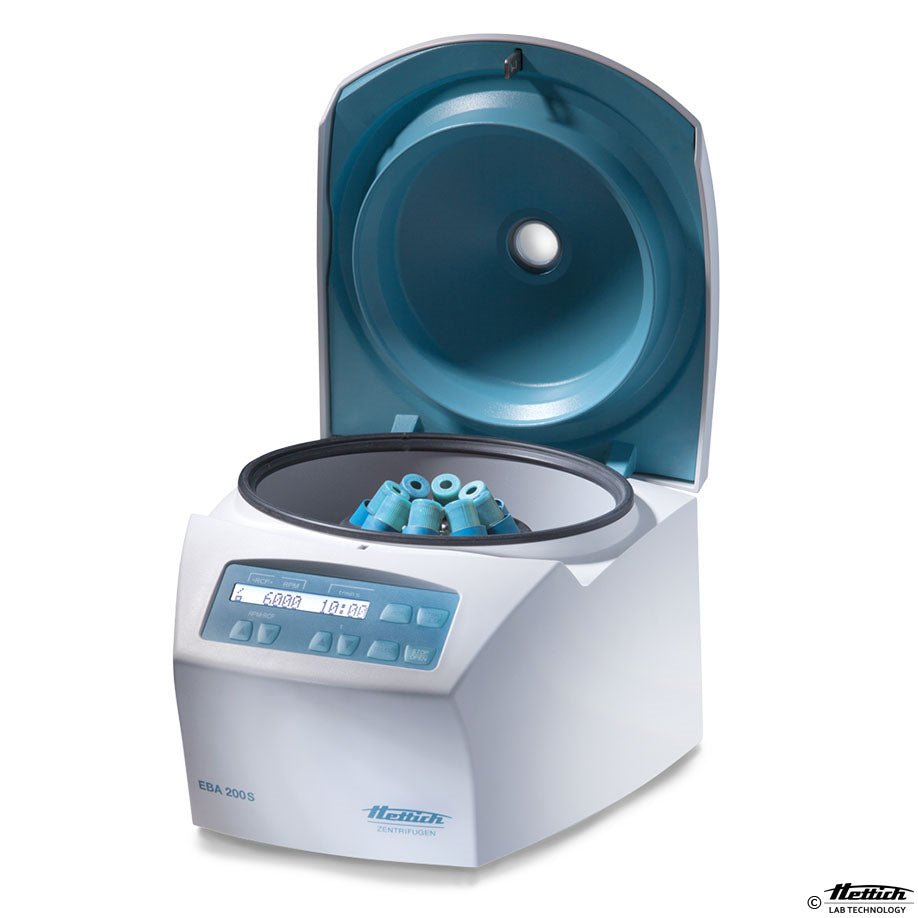

The EBA 200 S is a small centrifuge for laboratory use with a low sample volume. It is equipped as standard with an 8-place angle rotor and can accommodate blood collection or urine tubes up to 15 ml. The device is IVDR-compliant according to Regulation (EU) 2017/746.
Technical Data
-
Maximum speed: 8,000 rpm (adjustable in 10-step increments)
-
Maximum RCF: 6,153
-
Maximum capacity: 8 x 15 ml
-
Noise level: ≤ 55 dB(A)
-
Dimensions (H x W x D): 228 x 261 x 353 mm
-
Weight: approx. 11 kg
Features and Functions
-
Includes 8-place angle rotor
-
Pulse button for short-spin centrifugation
-
2 individually adjustable acceleration and braking ramps
-
Operation via membrane keypad
-
Illuminated display with all relevant parameters
-
2 adjustable signals after run completion (audible and visual)
Safety and Device Features
-
Plastic housing
-
Metal lid with viewing window
-
One-hand lid closure
-
Lid drop protection
-
Emergency release
-
Light metal bowl
-
Brushless drive
-
Error display
-
Imbalance monitoring and automatic shutdown
The EBA 200 S is designed for routine centrifugation of small sample volumes and supports structured workflows in the laboratory.
